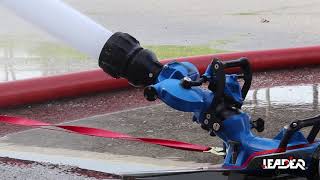

Oscillating portable monitor - PARTNER 2 OSC
EN 15-767 certified
PARTNER 2 monitor complies with the requirements of the European standard EN 15-767.
Flow rate up to 3000 l/min*
PARTNER 2 achieves a flow rate that would usually require the installation of a larger monitor.
- Flow rate up to 2000 l/min with a 2.5" BSP F inlet
- *Flow rate up to 3000 l/min with a 4" BSP M inlet or 2 × 2.5" BSP F
The system oscillates from 650 l/min onward
Non-slip safety valve
In case of movement of the monitor (lifting and/or sliding), it will reduce but will not stop the flow rate in order to protect the firefighters, and especially to avoid any excessive water hammer.
Integrated oscillating system
PARTNER 2 OSC is equipped with an oscillating system that allows automatic sweep with an adjustable amplitude of 10° to 40°.
PRODUCT CHARACTERISTICS
Lightweight (only 13.8 kg) and compact, PARTNER 2 OSC is deployed in seconds. It has a powerful flow rate of up to 3000 l/min (depending on the selected inlet).
PARTNER 2 is equipped with a safety valve that reduces the flow rate in order to protect the firefighters while avoiding any excessive water hammer.
PARTNER 2 OSC is equipped with an oscillating system that allows automatic sweep with an adjustable amplitude of 10° to 40°. Very low maintenance due to its very robust design and materials used.
GENERAL CHARACTERISTICS
- Weight
- 13.8 kg
- Flow rate
- up to 2000 l/min with a 2.5" BSP F inlet
up to 3000 l/min with a 4" BSP M inlet or 2 × 2.5" BSP F - Pressure
- 6 bar
- Available inlets
- 2.5" BSP F
4’’ BSP F
4’’ BSP M - Swivel
- 2.5’’ BSP F
4’’ BSP M - Material
- cast aluminium body and stainless steel supports
- Dimensions W x D x H
- Retracted - 76 x 36 x 36cm
Extended - 71 x 65 x 36cm - Safety valve
- yes
- Pressure gauge protected
- yes
- Vertical elevation
- up to 85° (from 25°)
- Horizontal orientation
- -20° to + 20°
- Oscillation
- yes
- Convertible
- no
