Large-flow ventilator

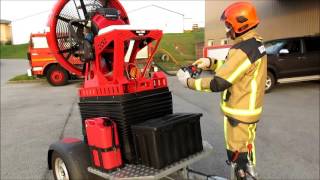

EASY 2000 trailer-mounted
Large flow
Easy to operate by one person
Adaptable to all types of vehicles
- On Skid: can be used on a forklift truck, trolley, tracked vehicle or on a vehicle bed (pick-up type)
- Trailer-mounted
Many options available
PRODUCT CHARACTERISTICS
EASY 2000 large-flow ventilator is the best in its class! With a flow rate of 350,000 m³/h, it allows smoke removal and cooling of large volumes (covered/closed parking lots, warehouses, production lines, medium/high-rise buildings, exhibition halls, etc.).
Alone, it is an effective response to ventilate large volumes.
Several, they offer flexibility of action because they can be used simultaneously to optimise the blowing power. They can also be distributed at various strategic points of a city.
Discover below our latest news about the EASY 2000:
- EXAMS CANCELED DUE TO A FIRE - LARGE VOLUME SMOKE CONTROL (PPV)
- IMPORTANT COVERED PARKING FIRE - MARSEILLE (FRANCE) - PPV
- DELIVERY OF A LARGE FLOW FAN IN HAINAUT CENTER (BELGIUM)
- DEMONSTRATION OF OUR LARGE FLOW FAN IN SWITZERLAND
- LARGE FLOW FAN - EASY 2000 FAN USED FOR ROBOTIC SUPPORT BY THE BMPM (BATAILLON MARIN POMPIER DE MARSEILLE)
GENERAL CHARACTERISTICS
- Open air flow
- 350,000 m³/h
- Weight
- Without elevation:301 kg
Elevation 600mm: 402 kg
Elevation 1200mm: 447 kg - Dimensions W x H x D
- Without elevation: 2800 x 1715 x 1430mm
Elevation 600mm: 2800 x 1915 x 1430mm
Elevation 1200mm: 2800 x 2050 x 1430 mm - Propeller diameter
- 885 mm
- Support
- Single-axle trailer with brakes, towball and sealed enclosure
- Engine control panel
- yes
- Wired remote control
- yes
- Misting system
- For water or water+additives – 260 l/min @ 7 bar
- Engine
- HONDA GX630.
- Engine power
- 20.8 HP
- Tank
- 18 litres
- Fuel
- Unleaded petrol SP95
- Autonomy
- 3h05
- Oil
- Engine oil: 5W-30 synthetic API SJ or later (CASTROL MAGNATEC)
Hydraulic oil for lifting option: CASTROL SAF XJ 75-140 - Battery
- 12V / 44 Ah battery to power the electrical equipment
- Noise level
- 93.9 dB at 7 m
- Ventilation type
- PPV
- Application
- Ventilating underground parking lots, industrial sites, warehouses, tunnels, etc.
