Foam proportioner
LEADER MIX AB 1000 PORTABLE
Automatic and autonomous
Autonomous, it requires no power supply to operate.
The foam eductor LeaderMIX can operate simultaneously with multiple nozzles of variable flow rates.
Wide operating range 200-1050 l/min
The foam proportioner LeaderMIX has a wide flow rate range (200-1050 l/min) and advantageously replaces up to 3 conventional inductors (200, 400 and 800).
Sucked in for sure!
Foam concentrate is instantly sucked in by LeaderMIX even during pulsing.
LeaderMIX operates from 5 bar up, adapts to flow rate variations and does not generate more pressure drop than a conventional venturi.
Portable and compact

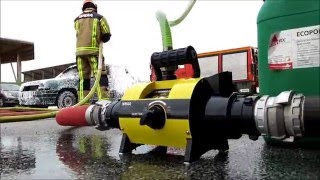

LeaderMIX 200-1000, in its portable version, weighs less than 14 kg and fits easily in the trunk of a vehicle.
It can be used on the ground in line by firefighters or directly from the supply manifold outlet.
Product features
Technical sheet
Expertises
Download
PRODUCT CHARACTERISTICS
Perfect compromise between the conventional venturi proportioner and the electronic foam dosing system, LeaderMIX 200 - 1000 allows precise dosing of all types of foam concentrates even during high flow rate variations. Starting at 5 bar, it allows the accurate dosing of the foam concentrate from 0.3% to 6% over a flow rate range from 200 to 1050 l/min.
Automatic, autonomous and requiring almost no maintenance, it is very easy to use and has a bypass position that reduces pressure drops when the use of additive is not necessary.
GENERAL CHARACTERISTICS
- Flow rate
- 200 to 1050 l/min
- Regulating pressure
- 5 to 16 bar
- Dosage
- 0.3%, 0.5%, 1%, 3%, 3%V, 6%
- Inlet / Outlet
- 2.5’’ BSP female
- Storage temperature
- -20°C to +60°C
- Operating temperature
- 0°C to +50°C
- Pressure loss
- 35%
- Bypass to reduce pressure losses
- Yes
- Inlet pressure gauge
- yes
- Weight
- 14 kg without extraction tube for the portable version
- Dimensions W x D x P
- 486 x 237 x 274 mm for the portable version
- Carrying case
- Yes for the portable version
- Extraction tube
- Flexible equipped with a plunger rod - W: 2.5m / 1’’ Storz D for the portable version
- Foam supply
- Quick coupling 1’’ Storz D for the portable version
- Check valve on the foam inlet
- Yes
- Purge button
- Yes for the portable version
